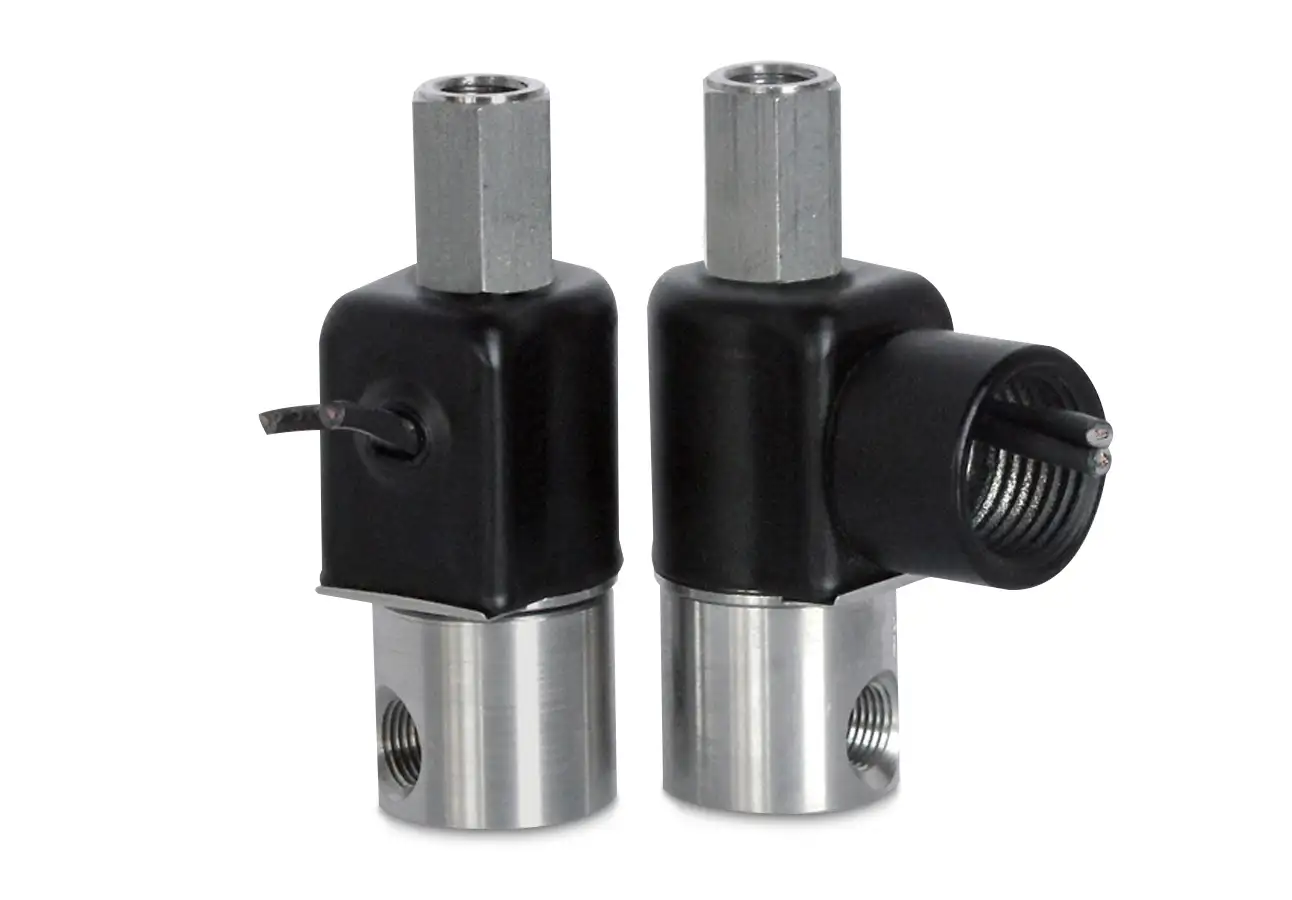

Series 50 Model 54

3-Way Normally Open Valve

Our original mini — engineered for space economy without sacrificing performance. Typical applications include medical, analytical instrumentation. Air, water, and other fluids compatible with standard Buna seals. Hot water, steam, gasoline, and many oils require special seal materials.

• Tough with options to use in hazardous location environments or low watt applications.
• High quality engineering.

  • SPECIFICATIONS
  • 2-D & 3-D CAD DRAWING

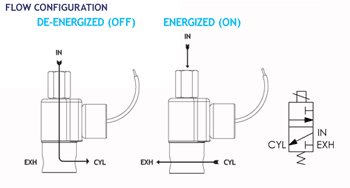

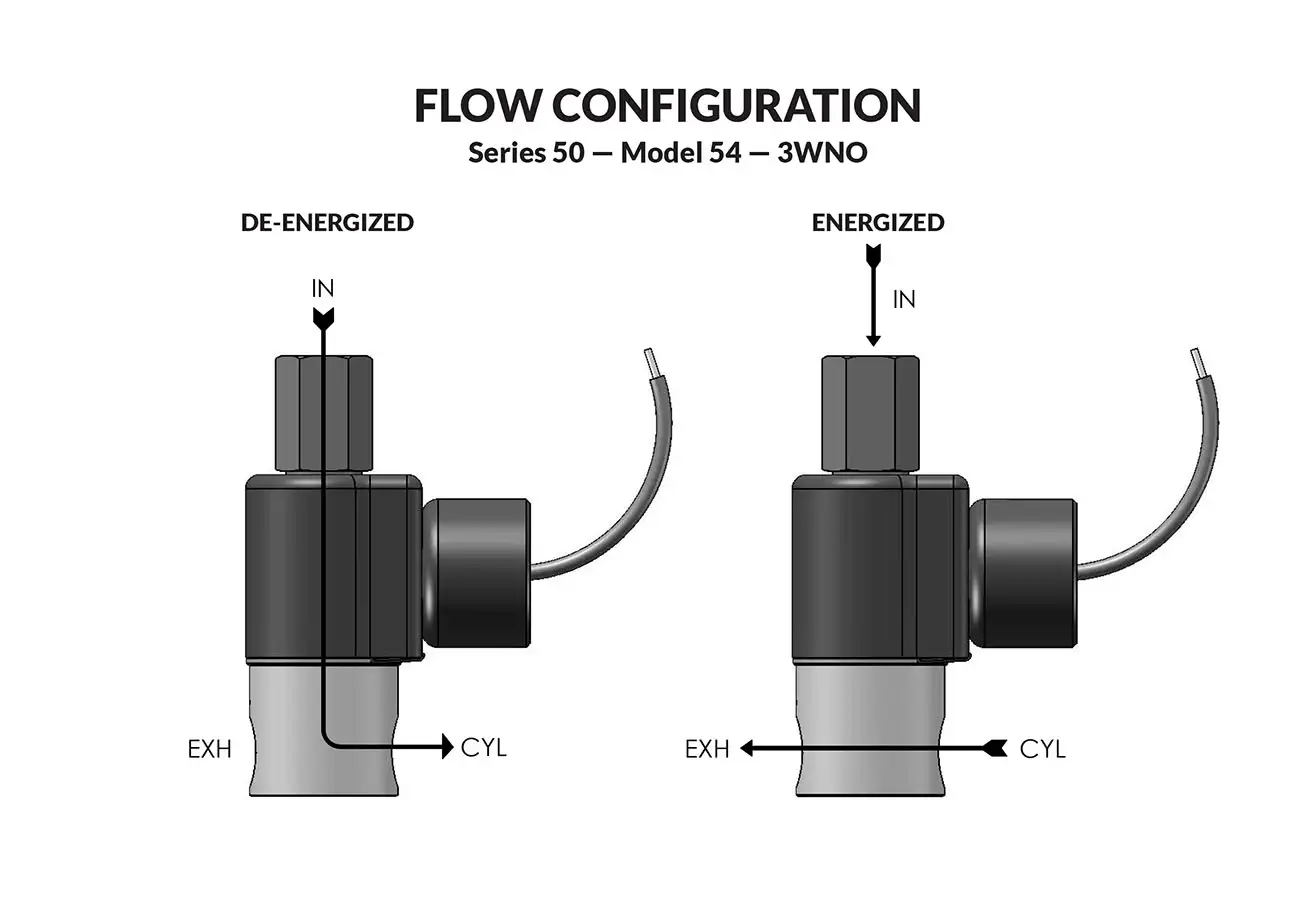

  • FLOW CHART
  • NOMENCLATURE

VALVE SPECIFICATIONS

MAX. OPER. PRESS. DIFF. ORIFICE SIZE CV FACTOR VALVE NUMBER
GROMMET HOUSING
CONDUIT HOUSING
AC DC N.O. N.C. N.O. N.C. 1/8 NPT PORTS 1/8 NPT PORTS
150 150 1/32 1/32 .020 .022 54GG8XGM 54GG8XCM
125 125 3/64 3/64 .048 .055 54HH8XGM 54HH8XCM
100 75 1/16 1/16 .075 .075 54JJ8XGM 54JJ8XCM
75 45 1/16 3/32 .075 .156 54KJ8XGM 54KJ8XCM
50 50 3/32 3/32 .150 .156 54KK8XGM 54KK8XCM
40 25 3/32 1/8 .150 .230 54NK8XGM 54NK8XCM

WHEN ORDERING VALVES OR REPAIR PACKS ADD VOLTAGE AND FREQUENCY TO COMPLETE

VALVE NUMBER. EXAMPLES: VALVE (54HH8XGM-120/60) REPAIR PACK (K54HHX-AC)

OPERATING CONDITIONS
Media: Air, water, and other fluids compatible with standard Buna seals. Hot water, steam, gasoline, and many oils require special seal materials. (Series 50 pressure ratings may change due to the viscosity of the liquid.)*
Valve Temperature Range: Standard Valves – 0°F (-18°C) to 104°F (40°C) ambient; 0°F (-18°C) to 150°F (65°C) media. Optional Valves – can tolerate much higher or much lower ambient and media temperatures.*
Maximum Operating Pressure Differentials: See table above.
Burst Pressure: 5000 PSI
Leakage: Bubble tight for standard valves.
Vacuum: To 5 Microns*

ELECTRICAL CHARACTERISTICS
Coil Voltage: 6.0 to 575V AC 60 HZ. and 5.4 to 515V AC 50 HZ. — 3.0 to 300V DC
Nominal Power: AC — 6.0 Watts DC — 7.0 Watts
Coil Construction: Molded and potted Class F. (Class H optional)
Typical Response Time on Air: 4 - 16 Milliseconds
Operating Speed: Up to 600 CPM
Duty Cycle: Continuous

MECHANICAL CHARACTERISTICS
Body: Stainless Steel (Std.), Brass (Opt.) or Aluminum (Opt.)
Internal Components: Stainless Steel
Elastomers: Nitrile (Buna) (Std.). Many other elastomers available.*
Orifice Diameter: See table above.
Porting: Standard 1/8" NPT (other ports available).*
Housing: Grommet and 1/2" NPT conduit - many options available.*
Listings: Most valves are UL and CSA listed.*
Life Expectancy: Millions of cycles, depending on application, lubrication, etc.
Valve Weight: Grommet Valve: 0.38 lb Conduit Valve: 0.44 lb
Repair Packs: See table above.
Options: Alternate Port Locations, Metering, Alternate Elastomers, Low Wattage, Spade Terminal Coil and Explosion Proof
* Consult representative or factory for options and specifications.

Series 50 General Purpose Valves Conduit

MODEL 54

3WNO

CONDUIT COIL CONNECTION

MODEL 54 10-32 PORTS

3WNO

CONDUIT CONNECTION

MODEL 54 BODY OPTION "E"

3WNO

CONDUIT CONNECTION

MODEL 54 BODY OPTION "O"

3WNO

CONDUIT CONNECTION

MODEL 54 BODY OPTION "R"

3WNO

CONDUIT CONNECTION

MODEL 54 METERED BODY

3WNO

CONDUIT CONNECTION

MODEL 54 STUD MOUNT BODY

3WNO

CONDUIT COIL CONNECTION

Series 50 General Purpose Valves Conduit/Bracket Connection

MODEL 54 PIPED EXHAUST

3WNO

CONDUIT/BRACKET CONNECTION

MODEL 54 10-32 PORTS

3WNO

CONDUIT/BRACKET CONNECTION

MODEL 54 BODY OPTION "E"

3WNO

CONDUIT/BRACKET CONNECTION

MODEL 54 BODY OPTION "O"

3WNO

CONDUIT/BRACKET CONNECTION

MODEL 54 BODY OPTION "R"

3WNO

CONDUIT/BRACKET CONNECTION

MODEL 54 METERED BODY

3WNO

CONDUIT/BRACKET CONNECTION

MODEL 54 STUD MOUNT BODY

3WNO

CONDUIT/BRACKET CONNECTION

Series 50 General Purpose Valves Grommet

MODEL 54

3WNO GROMMET WITH LEADS

MODEL 54 10-32 PORTS

3WNO

GROMMET WITH LEADS

MODEL 54 BODY OPTION "E"

3WNO

GROMMET WITH LEADS

MODEL 54 BODY OPTION "O"

3WNO

GROMMET WITH LEADS

MODEL 54 BODY OPTION "R"

3WNO

GROMMET WITH LEADS

MODEL 54 METERED BODY

3WNO

GROMMET WITH LEADS

MODEL 54 STUD MOUNT BODY

3WNO

GROMMET WITH LEADS

Series 50 General Purpose Valves Grommet/Bracket Connection

MODEL 54

3WNO

GROMMET/BRACKET WITH LEADS

MODEL 54 10-32 PORTS

3WNO

GROMMET/BRACKET WITH LEADS

MODEL 54 BODY OPTION "E"

3WNO

GROMMET/BRACKET WITH LEADS

MODEL 54 BODY OPTION "O"

3WNO

GROMMET/BRACKET WITH LEADS

MODEL 54 BODY OPTION "R"

3WNO

GROMMET/BRACKET WITH LEADS

MODEL 54 METERED BODY

3WNO

GROMMET/BRACKET WITH LEADS

MODEL 54 STUD MOUNT BODY

3WNO

GROMMET/BRACKET WITH LEADS

Series 50 General Purpose Valves Splice Box

MODEL 54

3WNO

SPLICE BOX CONNECTION

MODEL 54 10-32 PORTS

3WNO

SPLICE BOX CONNECTION

MODEL 54 BODY OPTION "E"

3WNO

SPLICE BOX CONNECTION

MODEL 54 BODY OPTION "O"

3WNO

SPLICE BOX CONNECTION

MODEL 54 BODY OPTION "R"

3WNO

SPLICE BOX CONNECTION

MODEL 54 METERED BODY

3WNO

SPLICE BOX CONNECTION

MODEL 54 STUD MOUNT BODY

3WNO

SPLICE BOX CONNECTION

Series 50 General Purpose Valves Yoke Leads

MODEL 54

3WNO

YOKE WITH LEADS

MODEL 54 10-32 PORTS

3WNO

YOKE WITH LEADS

MODEL 54 BODY OPTION "E"

3WNO

YOKE WITH LEADS

MODEL 54 BODY OPTION "O"

3WNO

YOKE WITH LEADS

MODEL 54 BODY OPTION "R"

3WNO

YOKE WITH LEADS

MODEL 54 BODY OPTION "R"

3WNO

YOKE WITH LEADS

MODEL 54 STUD MOUNT BODY

3WNO

YOKE WITH LEADS

Series 50 General Purpose Valves Yoke Spades

MODEL 54

3WNO

YOKE WITH SPADE TERMINALS

MODEL 54 10-32 PORTS

3WNO

YOKE WITH SPADE TERMINALS

MODEL 54 BODY OPTION "E"

3WNO

YOKE WITH SPADE TERMINALS

MODEL 54 BODY OPTION "O"

3WNO

YOKE WITH SPADE TERMINALS

MODEL 54 BODY OPTION "R"

3WNO

YOKE WITH SPADE TERMINALS

MODEL 54 METERED BODY

3WNO

YOKE WITH SPADE TERMINALS

MODEL 54 STUD MOUNT BODY

3WNO

YOKE WITH SPADE TERMINALS
