Series E50 Model E54

Hazardous Location
3-Way Normally Open Valve

Peter Paul explosion proof valves are used where fire or explosion hazards exist due to the presence of flammable gases or vapors, flammable liquids, combustible dust, or easily ignitable fibers. Hazardous Location valves are recommended, or in some cases compulsory, where a high level of protection from explosion is required.

• Miniature Hazardous Location valve.
• Flame-Proof construction.
• High quality engineering.

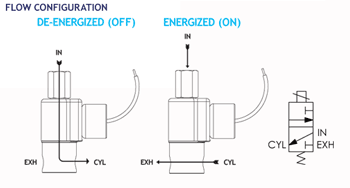

54flow

  • SPECIFICATIONS
  • 2-D & 3-D CAD DRAWING
  • FLOW CHART
  • NOMENCLATURE

VALVE SPECIFICATIONS

MAX. OPER.
PRESS. DIFF.
ORIFICE SIZE CV FACTOR VALVE NUMBER
AC DC N.O. N.C. N.O. N.C.
150 150 1/32 1/32 .020 .022 E54GG8XCCM
125 125 3/64 3/64 .048 .055 E54HH8XCCM
100 75 1/16 1/16 .075 .075 E54JJ8XCCM
75 45 1/16 3/32 .075 .156 E54JK8XCCM
50 50 3/32 3/32 .156 .156 E54KK8XCCM
50 30 1/16 1/8 .075 .230 E54NJ8XCCM
40 25 3/32 1/8 .156 .230 E54NK8XCCM

WHEN ORDERING VALVES OR REPAIR KITS ADD VOLTAGE AND FREQUENCY TO COMPLETE
VALVE NUMBER. EXAMPLES: VALVE (E54JK8XCCM-120/60) REPAIR KIT (5KE54JK-AC)

OPERATING CONDITIONS

Media: Air, and other fluids compatible with standard Buna seals. Hot water, steam, gasoline, oils, some hydraulic fluids, and many media require special seal materials. (Series 50 pressure ratings may change due to the viscosity of the liquid.)*
Valve Temperature Range: Standard Valves – 0°F (-18°C) to 104°F (40°C) ambient; 0°F (-18°C) to 150°F (65°C) media. Optional Valves – can tolerate much higher or much lower ambient and media temperatures.*
Maximum Operating Pressure Differentials: See table above.
Burst Pressure: 5000 PSI
Leakage: Bubble tight for standard valves.
Vacuum: To 5 Microns*

ELECTRICAL CHARACTERISTICS

Coil Voltage: 6.0 to 575V AC 60 HZ. and 5.4 to 515V AC 50 HZ. — 3.0 to 300V DC.
Nominal Power: AC — 5.6 Watts DC — 7.2 Watts
Coil Construction: Molded Class F with third wire ground (Std.), Class H or Potted (Opt.)
Typical Response Time on Air: 4 - 16 Milliseconds
Operating Speed: Up to 600 CPM
Duty Cycle: Continuous

MECHANICAL CHARACTERISTICS

Body: Stainless Steel (Std.)
Internal Components: Stainless Steel
Elastomers: Nitrile (Buna) (Std.). Many other elastomers available.*
Orifice Diameter: See table above.
Porting: 1/8" NPT (Std.)
Housing: Flame-Proof construction with 1/2" NPT conduit
Listings: Valves are UL listed and CSA certified for Hazardous Locations — Class I, Div 1, Group C and D - Class II, Div 1, Groups E, F, and G; Div 2, Groups A, B, C, D, E, F, and G
Life Expectancy: Millions of cycles, depending on application, lubrication, etc.
Valve Weight: 0.40 lbs
Repair Kits: See table above.
Options: Alternate Port Locations, Metering, Alternate Elastomers, All Stainless Steel Construction*

* Consult representative or factory for options and specifications.

Series E50 Hazardous Locations Valves


MODEL E54
3WNO
EXPLOSION PROOF

MODEL E54 10-32 PORTS
3WNO
EXPLOSION PROOF

MODEL E54 BODY OPTION "E"
3WNO
EXPLOSION PROOF

MODEL E54 BODY OPTION "O"
3WNO
EXPLOSION PROOF

MODEL E53 BODY OPTION "R"
3WNO
EXPLOSION PROOF

MODEL E54 METERED BODY
3WNO
EXPLOSION PROOF
